How to Build a Predictive Maintenance Strategy That Scales Across All Asset Classes

by | Articles, Maintenance and Reliability, Predictive Maintenance

A scalable predictive maintenance strategy isn’t built on sensors, dashboards, or software – it’s built on engineering logic, failure physics, and an operating model that holds up across all asset types. Most PdM programs fail to scale, not because the technology is weak, but because the strategy is inconsistent, vendor-driven, or built around individual assets instead of a system-wide framework. When a PdM program follows clear decision rules, standardized workflows, and consistent detection capability, scale becomes a natural outcome.

Below is a practical, engineering-based framework for creating a predictive maintenance strategy that can scale across rotating equipment, electrical assets, hydraulics, conveyors, utilities, and more.

Why Predictive Maintenance Often Fails to Scale

PdM pilots typically start strong: a limited area, a few assets instrumented, and dashboards showing green or yellow conditions. But scaling across a full facility – or multiple facilities – breaks down quickly.

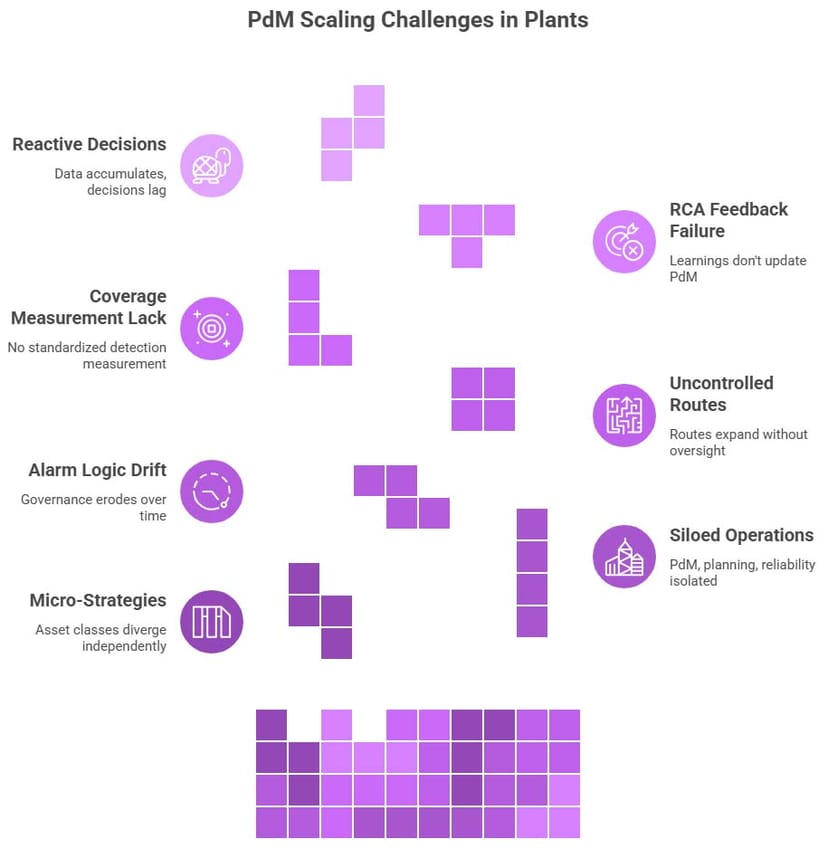

Predictive maintenance scaling challenges in plants

Common issues include:

  • Each asset class develops its own mini-strategy
  • PdM, planning, and reliability operate in silos
  • Alarm logic drifts without oversight
  • Routes grow uncontrollably
  • No consistent detection criteria
  • RCA findings don’t inform updates to PdM
  • Lots of data, but inconsistent decisions

Scalability requires one unified, physics-based approach – not many disconnected ones.

Principle 1: Start With Failure Modes, Not Technology

A scalable strategy begins with failure-mode analysis, not sensor selection.

Correct sequence:

  1. Identify credible failure modes
  2. Determine detectability based on failure physics
  3. Select the PdM technique most sensitive to each failure mode
  4. Set inspection frequency based on degradation rate
  5. Standardize validation and decision criteria
  6. Connect PdM findings to planning and scheduling

This approach works for any asset type because the logic is universal.

Principle 2: Build an Asset-Class Based Framework

Scaling is easier when assets are grouped by how they behave mechanically and electrically—not by OEM, department, or legacy system.

Rotating Equipment (motors, pumps, fans, blowers)

Failure modes: imbalance, misalignment, bearing fatigue, lubrication issues, electrical degradation
Techniques:

  • Vibration (primary)
  • Ultrasound (friction, lubrication quality, early bearing stress)
  • Motor Signature / Current Signature Analysis (energized)
  • Offline MCA (circuit analysis)
  • Thermography under load

Hydraulic Systems

Failure modes: particulate/water contamination, seal leakage, cavitation/aeration, valve drift, pump wear, thermal degradation, actuator wear
Techniques: fluid analysis, pressure trending, ultrasound, thermography

Gear-Driven Systems (gearboxes, reducers, drives)

Failure modes: gear mesh wear, lubrication starvation, overload, misalignment
Techniques: vibration, oil analysis (particle count, spectroscopy, viscosity), thermography

Electrical Equipment (panels, switchgear, MCCs)

Failure modes: loose connections, insulation breakdown, phase imbalance, overheating
Techniques: thermography (NFPA 70B, ASTM E1934, NETA MTS), ultrasound in electrical mode, MCSA

Conveyance Systems (belts, chains, pulleys, rollers)

Techniques: vibration, ultrasound, belt tension measurement, laser alignment, wear gauging, lubrication checks, impact monitoring

Asset-class frameworks prevent the chaos of customized PdM logic for every individual machine.

Principle 3: Standardize Detection Logic Across Techniques

Scaling PdM requires consistent interpretation rules across all technologies.

Vibration Analysis

  • Velocity RMS (10–1000 Hz) for general health, following ISO 10816/20816
  • High-frequency acceleration for early bearing defects
  • Displacement for low-speed, low-frequency problems
  • Envelope (demodulation) for repetitive impact events such as bearing defects, gear mesh anomalies, and cavitation
  • Phase analysis for misalignment and looseness
  • Acceptance testing during installation or rebuilds

Ultrasound

  • Trending dB levels against established baselines
  • Identifying friction, lack of lubrication, and impact signatures
  • Electrical inspection for corona, arcing, and tracking
  • Leak identification

Thermography

  • Thermal comparison under known load
  • Anomaly detection aligned with NFPA 70B (2023 Standard), ASTM E1934, and NETA MTS
  • Delta-T evaluation between similar components or phases

Motor Testing

Offline: insulation resistance, polarization index, surge testing
Online: MCSA for rotor bar issues, air-gap problems, turn-to-turn faults

A scalable strategy uses defined criteria for Trend, Warning, Alarm, and Critical, removing ambiguity from decision-making.

Principle 4: Base Inspection Frequency on Degradation Rate

Inspection frequency should reflect the speed of degradation and detection windows.

Important nuance:
Fixed frequencies (monthly, quarterly, annual) are valid when tied to operational cycles and justified by failure progression, not when chosen arbitrarily.

Key drivers include:

  • Failure mechanism speed
  • Portion of the P-F interval detectable by the technique
  • Equipment criticality
  • Environmental and load conditions

Clarifying the P-F Interval

The P-F interval is the time between when a failure becomes detectable (Potential Failure) and when the asset loses function (Functional Failure).
This interval can range from minutes to months, depending on the failure mode.

Inspection schedules must fit inside that window.

Principle 5: Use One Standard Workflow From Detection to Work Execution

A scalable PdM program relies on a consistent workflow:

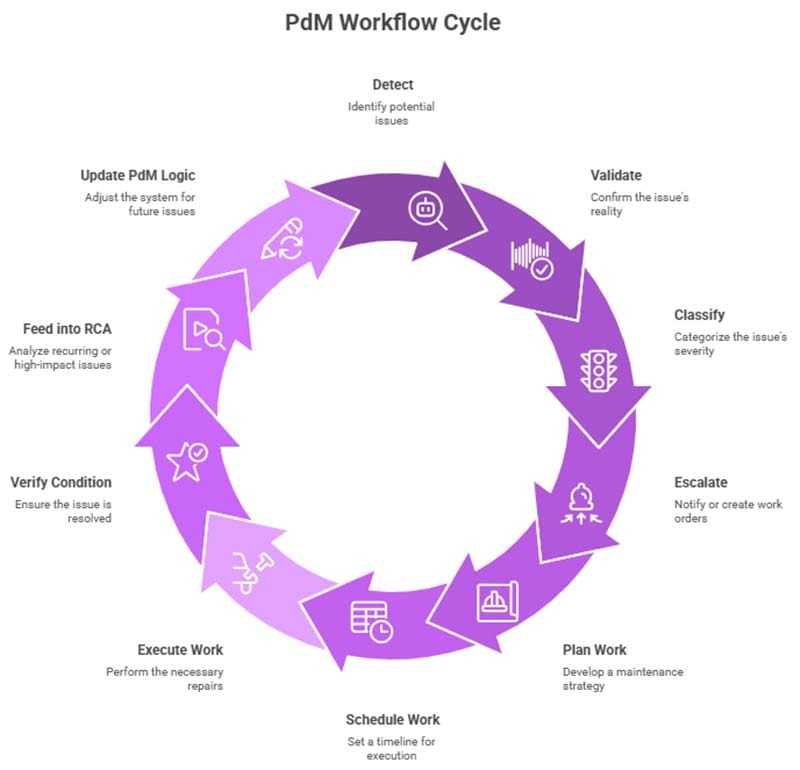

PdM workflow cycle
  1. Detect
  2. Validate (rule out noise/mounting issues/transients)
  3. Classify severity
  4. Escalate appropriately:
    • Trend/Warning: Notification
    • Alarm/Critical: Work Order
  5. Plan the corrective work
  6. Schedule it inside the P-F window
  7. Execute the task
  8. Verify condition post-repair
  9. Feed into RCA if needed
  10. Update PdM logic if the failure mode changes

This prevents slow response to real problems and ensures PdM is tied directly to work execution.

Principle 6: Implement PdM Governance to Prevent Strategy Drift

PdM degrades quickly without oversight. Governance must manage:

  • Alarm threshold changes
  • Route expansion
  • Technician repeatability
  • PdM-to-CMMS coding
  • Trend reporting cadence
  • RCA-to-PdM feedback loop

Signal Quality KPI

Signal quality should measure:

  • Measurement repeatability
  • Signal-to-noise ratio
  • Data completeness
  • Mounting integrity
  • Route compliance
  • Frequency-domain clarity

These KPIs prevent the slow drift toward unreliable data.

Principle 7: Use a Unified PdM Maturity Model

A scalable program evolves through predictable levels:

  • Level 1: Data collection
  • Level 2: Reliable detection
  • Level 3: Integrated planning and scheduling
  • Level 4: Predictive execution
  • Level 5: Multi-site standardization and governance

This model guides development and provides benchmarking consistency.

Principle 8: Integrate PdM With the CMMS Without Corrupting Data

Effective integration requires:

  • Notifications for early-stage conditions
  • Immediate Work Orders for Alarm and Critical findings
  • Evidence attached to every PdM-originated entry
  • Clear PdM work codes for reporting
  • Post-maintenance verification before closure

This ensures the CMMS reflects true equipment condition without noise or clutter.

Principle 9: Standardize What Must Be Standard—but Localize What Must Be Local

Standardize:

  • PdM techniques
  • Alarm logic
  • Asset-class detection rules
  • Workflows
  • CMMS coding structure
  • Decision criteria
  • KPIs

Localize:

  • Environmental load
  • Equipment age
  • Skills available
  • Failure history
  • Local resource constraints

Scalability requires both uniformity and flexibility.

Principle 10: Measure Conversion, Not Collection

The value of PdM is not in how much data you collect.

Key metrics:

  • % of PdM findings converted to completed work
  • % of interventions performed inside the P-F window
  • Repeat failure reduction
  • Emergency work reduction
  • Condition-monitoring coverage
  • Signal quality index

PdM only scales when it drives action, not just reporting.

Conclusion

A predictive maintenance strategy that scales across all asset classes is built on:

  • Failure-mode logic
  • Proper technique selection using industry standards
  • Asset-class frameworks
  • Detection rules that apply universally
  • Inspection frequencies tied to degradation rates
  • Strong governance
  • Clean CMMS integration
  • Maturity-based progression
  • KPIs that measure action, not data volume

When implemented correctly, PdM expands naturally from a small pilot to a plant-wide and enterprise-wide capability that measurably reduces failures and stabilizes operations.
